STM32 CAN-bus sensor node
“12 V CAN-bus sensor node: STM32G0, CAN transceiver, 3.3 V buck and a screw terminal”
- Copper layers
- 2
- Board size
- 50 × 50 mm
- Parts
- 44
- Connections routed
- 87 of 87
- KiCad DRC errors
- 0
- Unconnected items
- 0
What came out of the sentence
- A KiCad schematic with stock library symbols and footprints
- A placed and routed KiCad board, checked by KiCad DRC
- A bill of materials matched to Mouser and LCSC listings, priced at your quantity
- Gerbers, drill and pick-and-place files, released because the board is clean
Sign in with Google or your email. Opening a sample is free and does not use a design; your first three designs are on us.
Schematic
The KiCad schematic, with stock library symbols. Open full size

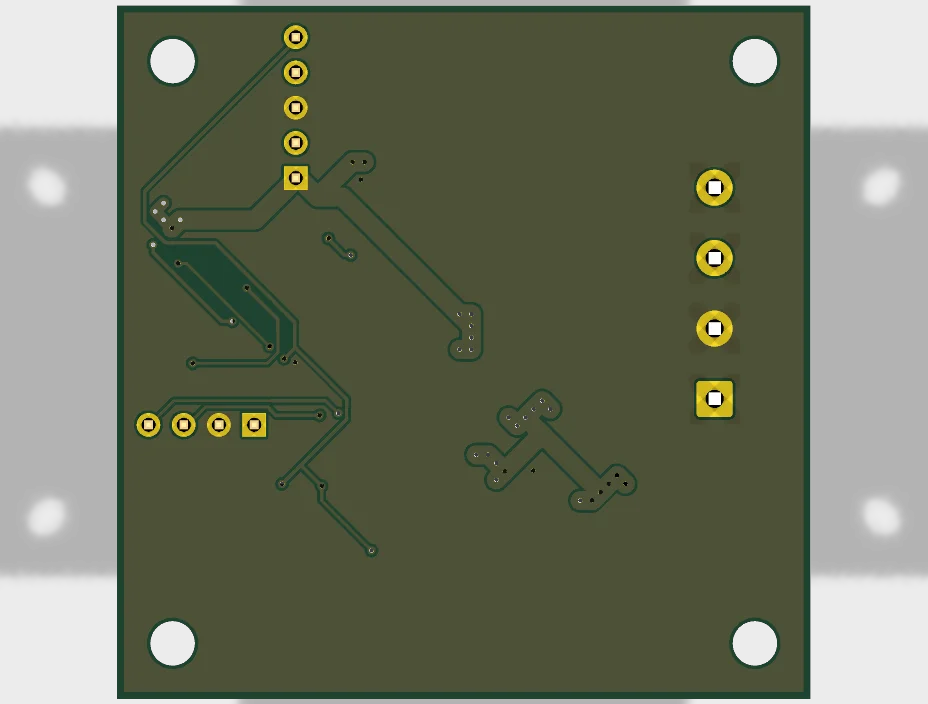

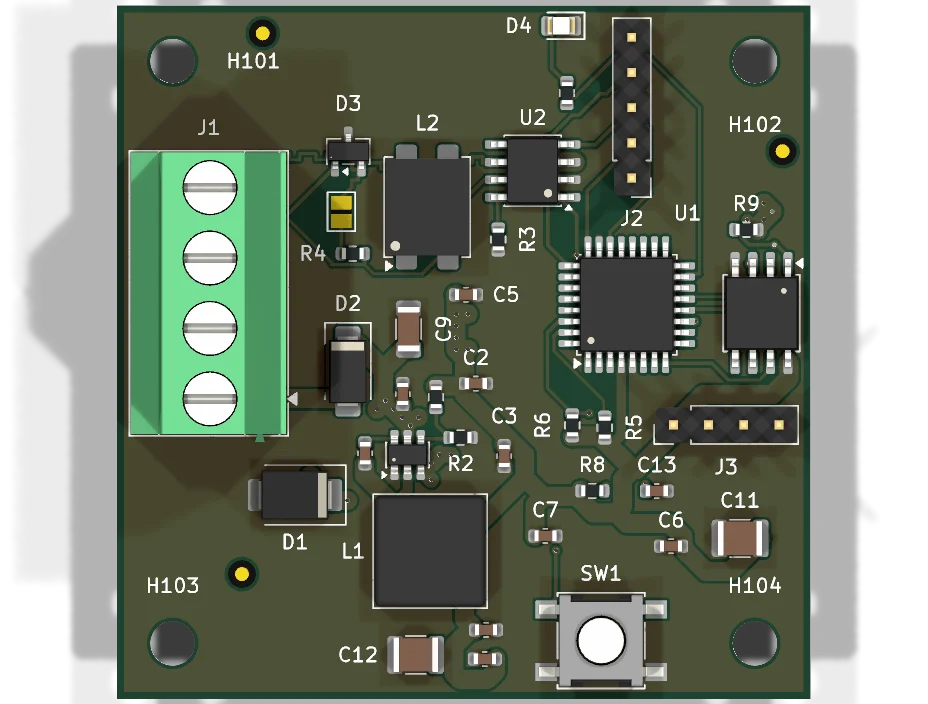

Both sides of the board
Bill of materials
27 lines matched to Mouser and LCSC listings: $10.16 of parts for one board. Prices and stock as of the last check; the studio refreshes them for your quantity.
| Refs | Qty | Value | Part | Source | Stock | Unit |
|---|---|---|---|---|---|---|
| C1, C2, C3, C5, C6, C7, C8 | 7 | 100nF0603 | CC0603KRX7R9BB104YAGEO | LCSCC14663 | 31,923,900 | $0.011 |
| C4 | 1 | 100nF 50V X7R0603 | CC0603KRX7R9BB104YAGEO | LCSCC14663 | 31,923,900 | $0.011 |
| C9 | 1 | GRM31CR71H106KA12L 10uF 50V X7R1206 | CL31A106KBHNNNESamsung Electro-Mechanics | LCSCC13585 | 2,289,798 | $0.255 |
| C10 | 1 | 100nF 16V0603 | CC0603KRX7R9BB104YAGEO | LCSCC14663 | 31,923,900 | $0.011 |
| C11, C12 | 2 | GRM32ER71A476KE15L 47uF 10V X7R1210 | GRM32ER61C476KE15LMurata Electronics | LCSCC77101 | 88,293 | $0.21 |
| C13 | 1 | 10nF0603 | 0603B103K500NTFH (Guangdong Fenghua Advanced Tech) | LCSCC57112 | 5,459,488 | $0.01 |
| D1 | 1 | SMBJ24AD | SMBJ24ADOWO | LCSCC284011 | 1,593 | $0.042 |
| D2 | 1 | SS36 3A 60VD | SS36Shandong Jingdao Microelectronics | LCSCC116712 | 64,787 | $0.035 |
| D3 | 1 | PESD2CAN,215SOT-23-3 | no orderable part identity | |||
| D4 | 1 | GREEN0805 | KT-0805GHubei KENTO Elec | LCSCC2297 | 2,660,507 | $0.016 |
| J1 | 1 | POWER_CANTerminalBlock | 39531-0004Molex | Mouser538-39531-0004 | 1,525 | $0.85 |
| J2 | 1 | SWDPinHeader | 254PZ-1x5P-VLXWCONN | LCSCC53055675 | 3,918 | $0.017 |
| J3 | 1 | I2C_EXPANSIONPinHeader | PZ2.54-1X4P-H25JXTCONN | LCSCC42431787 | 15,138 | $0.021 |
| JP1 | 1 | CAN_TERM_ENABLESolderJumper-2 | not sourced | |||
| L1 | 1 | XAL3230-682ME 6.8uH 4.5A IsatL | CD73-6R8M 6.8UHDMBJ | LCSCC2826679 | 147 | $0.049 |
| L2 | 1 | CAN_CMCL | unparseable value | |||
| R1 | 1 | 100k0603 | 0603WAF1003T5EUNI-ROYAL(Uniroyal Elec) | LCSCC25803 | 19,381,676 | $0.003 |
| R2 | 1 | 22.1k0603 | RCA0322K1FLFHKR(Hong Kong Resistors) | LCSCC22369889 | 122,994 | $0.001 |
| R3, R8, R9 | 3 | 10k0603 | 0603WAF1002T5EUNI-ROYAL(Uniroyal Elec) | LCSCC25804 | 31,153,974 | $0.002 |
| R4 | 1 | 120R0603 | 0603WAF1200T5EUNI-ROYAL(Uniroyal Elec) | LCSCC22787 | 2,076,777 | $0.002 |
| R5, R6 | 2 | 4.7k0603 | 0603WAF4701T5EUNI-ROYAL(Uniroyal Elec) | LCSCC23162 | 18,652,206 | $0.003 |
| R7 | 1 | 1k0603 | 0603WAF1001T5EUNI-ROYAL(Uniroyal Elec) | LCSCC21190 | 23,273,653 | $0.003 |
| SW1 | 1 | RESETSW | B3S-1000Omron Electronics | LCSCC2733655 | 5,865 | $0.362 |
| U1 | 1 | STM32G0B1KBT6LQFP-32 | STM32G0B1KBT6STMicroelectronics | LCSCC5270165 | 243 | $4.90 |
| U2 | 1 | SN65HVD230SOIC-8 | SN65HVD230DRTexas Instruments | LCSCC12084 | 183,446 | $0.571 |
| U3 | 1 | LMR51430SOT-23-6 | LMR51430XDDCRTexas Instruments | LCSCC5185863 | 8,375 | $0.789 |
| U4 | 1 | W25Q32JVSSSOIC-8 | W25Q32JVSSIQWinbond Elec | LCSCC179173 | 18,185 | $1.70 |
Files
Released because KiCad found zero DRC errors and nothing unconnected. Sign up to download them or open the project in the studio.
circuit.kicad_schKiCad schematicSign up to downloadcircuit.kicad_pcbKiCad board, placed and routedSign up to downloadgerbers.zipGerber layers and Excellon drill filesSign up to downloadorder.zipGerbers, pick and place, assembly BOM with LCSC numbers, fab settingsSign up to downloadcircuit-ipc2581.xmlIPC-2581, one-file CAM handoffSign up to downloadbom.csvBill of materials with distributor part numbers and pricesSign up to downloadboard.glb3D model of the assembled boardSign up to download
