Example boards · built from one sentence
ESP32-C3 sensor board with LiPo charging
“USB-C powered ESP32-C3 board with a LiPo charger, a BME280 sensor on I²C and a status LED; USB-C and battery connector on the board edge”
A battery-powered ESP32-C3 sensor board: Wi-Fi and Bluetooth LE, a LiPo that charges from USB-C, and a BME280 for temperature, humidity and pressure. It is the hardware most connected-sensor products start from, designed here from the one sentence above, down to the Gerbers and a priced bill of materials.

- Copper layers
- 2
- Board size
- 45 × 45 mm
- Parts
- 46
- Connections routed
- 131 of 131
- DRC errors
- 0
- Unconnected items
- 0
What came out of the sentence
- A KiCad schematic with stock library symbols and footprints
- A placed and routed KiCad board: every net connected, zero design-rule errors
- A bill of materials matched to Mouser and LCSC listings, priced at your quantity
- Gerbers, drill and pick-and-place files, released because the board passed Koppar’s checks
Sign in with Google or your email. Opening a sample is free and does not use a design; your first three designs are on us.
What this ESP32-C3 board design is for
- A connected sensor prototype: room, greenhouse or cold-chain monitoring on a battery
- A first hardware revision for a startup demo, ready for a fab and assembly order
- A reference ESP32-C3 layout to adapt: another sensor, more I/O, a different battery connector
Design notes
How the ESP32-C3 board design is put together, part by part.
LiPo charging with power path
An MCP73871 charges the cell from USB-C and powers the board from USB while it charges; unplugged, the board runs from the LiPo.
3.3 V from a falling battery
A TPS63031 buck-boost holds 3.3 V as the LiPo runs from 4.2 V down past 3.3 V, where a plain LDO would drop out.
USB-C done properly
5.1 kΩ pull-downs on CC1 and CC2 so any USB-C charger supplies 5 V, a USBLC6-2SC6 ESD array on D+ and D− at the connector, and 22 Ω series resistors into the ESP32-C3’s native USB.
Antenna clear of copper
The ESP32-C3-WROOM-02 sits on the top edge with its antenna past the board outline: no copper, parts or traces under it.
Sensor and controls
The BME280 on I²C with 4.7 kΩ pull-ups, decoupled at its supply pins; reset and boot buttons and a status LED; the USB-C and battery connectors on the board edge, as the sentence asked.
Schematic
The KiCad schematic, with stock library symbols. Open full size

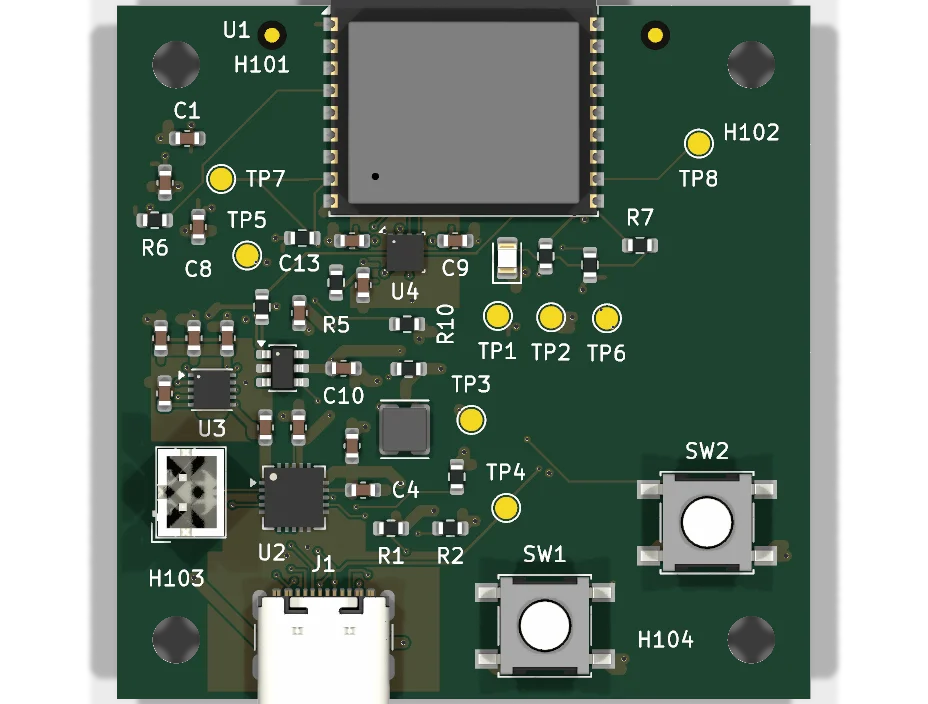

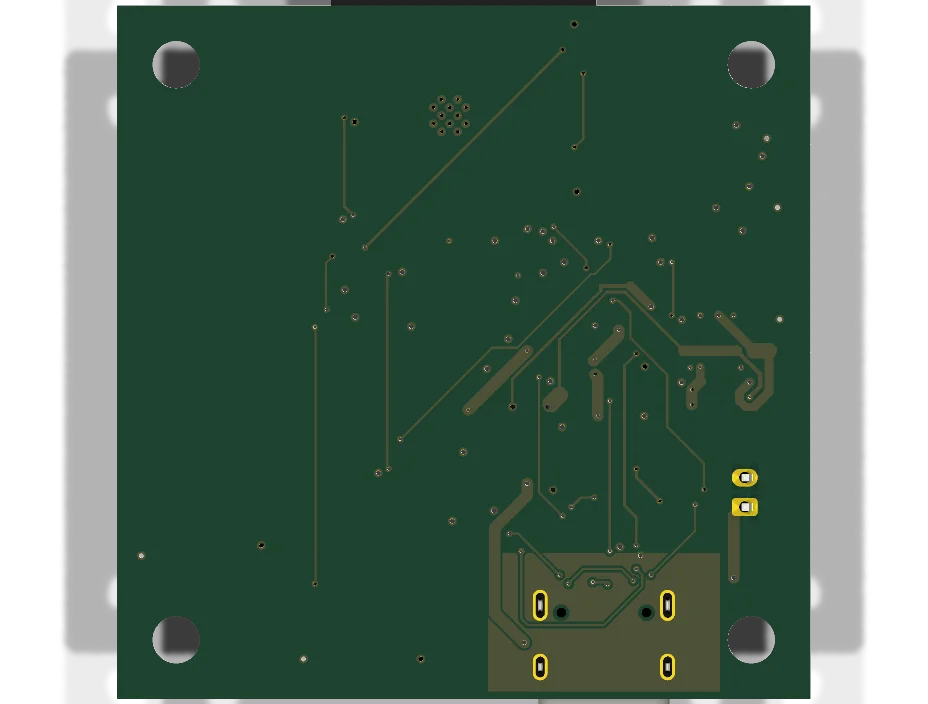

Both sides of the board


From schematic to Gerbers
What one sentence produced for this ESP32-C3 board design, and what you take to a board house.
Schematic to PCB
The KiCad schematic, with stock library symbols and footprints, and the placed and routed board come from the same sentence: 131 connections on 2 copper layers, 45 × 45 mm, every net routed.
Design-rule clean before release
Koppar releases a board only when every net is connected, the KiCad design-rule check finds no errors, power traces are sized for the current they carry and every part has a footprint. This one: 0 DRC errors, 0 unconnected items.
Gerbers and assembly files
Gerbers and Excellon drill files, pick-and-place, an assembly BOM with LCSC part numbers and IPC-2581: ready for a board house or an assembly service.
BOM with live pricing
21 lines matched to Mouser and LCSC listings, $16.25 of parts for one board at the last check. The studio re-prices them for your quantity and flags anything out of stock.
Bill of materials
21 lines matched to Mouser and LCSC listings: $16.25 of parts for one board. Prices and stock as of the last check; the studio refreshes them for your quantity.
| Refs | Qty | Value | Part | Source | Stock | Unit |
|---|---|---|---|---|---|---|
| C1, C2, C3, C4, C5, C6, C7, C8, C9, C10, C11, C12 | 12 | 100nF0603 | CC0603KRX7R9BB104YAGEO | LCSCC14663 | 31.9M | $0.011 |
| C13, C14, C15, C16 | 4 | 10uF0603 | CL10A106KP8NNNCSamsung Electro-Mechanics | LCSCC19702 | 11.2M | $0.027 |
| D1 | 1 | LED Red0805 | NCD0805R1Foshan NationStar Optoelectronics | LCSCC84256 | 3.8M | $0.013 |
| J1 | 1 | USB4105-GF-AUSB | USB4105-GF-AGCT | Mouser640-USB4105-GF-A | 403.5K | $0.80 |
| J2 | 1 | LiPo JST-PHJST | B2B-PH-K-S-2PZZBXCONN | LCSCC54444764 | 1,564 | $0.01 |
| L1 | 1 | 2.2uHL | CD31 2R2M 2.2UHDMBJ | LCSCC2826610 | 1,394 | $0.03 |
| R1, R2 | 2 | 5.1k0603 | 0603WAF5101T5EUNI-ROYAL(Uniroyal Elec) | LCSCC23186 | 23.5M | $0.002 |
| R3, R4 | 2 | 220603 | RC0603FR-0722RLYAGEO | LCSCC107701 | 860.7K | $0.002 |
| R5, R6 | 2 | 4.7k0603 | 0603WAF4701T5EUNI-ROYAL(Uniroyal Elec) | LCSCC23162 | 18.7M | $0.003 |
| R7 | 1 | 1k0603 | 0603WAF1001T5EUNI-ROYAL(Uniroyal Elec) | LCSCC21190 | 23.3M | $0.003 |
| R8 | 1 | 2k0603 | 0603WAF2001T5EUNI-ROYAL(Uniroyal Elec) | LCSCC22975 | 11.4M | $0.002 |
| R9 | 1 | 20k0603 | 0603WAF2002T5EUNI-ROYAL(Uniroyal Elec) | LCSCC4184 | 7.7M | $0.002 |
| R10 | 1 | 1.5k0603 | 0603WAF1501T5EUNI-ROYAL(Uniroyal Elec) | LCSCC22843 | 4.1M | $0.002 |
| R11, R12 | 2 | 10k0603 | 0603WAF1002T5EUNI-ROYAL(Uniroyal Elec) | LCSCC25804 | 31.2M | $0.002 |
| SW1 | 1 | RESETSW | B3S-1000Omron Electronics | LCSCC2733655 | 5,865 | $0.362 |
| SW2 | 1 | BOOTSW | B3S-1000Omron Electronics | LCSCC2733655 | 5,865 | $0.362 |
| U1 | 1 | ESP32-C3-WROOM-02ESP32-C3-WROOM-02 | ESP32-C3-WROOM-02-N4Espressif Systems | LCSCC2934560 | 5,361 | $3.30 |
| U2 | 1 | MCP73871QFN-20-1 | MCP73871T-2CCI/MLMicrochip Tech | LCSCC511310 | 1,503 | $2.19 |
| U3 | 1 | TPS63031DSKWSON-10-1 | TPS63031DSKRTexas Instruments | LCSCC15516 | 6,178 | $1.03 |
| U4 | 1 | BME280Bosch | BME280Bosch Sensortec | LCSCC92489 | 4,050 | $7.83 |
| U5 | 1 | USBLC6-2SC6SOT-23-6 | USBLC6-2SC6HXY MOSFET | LCSCC5261088 | 13,422 | $0.041 |
Files
Released because the board passed Koppar’s checks: every net connected, zero design-rule errors, power traces sized for their current. Sign up to download them or open the project in the studio.
circuit.kicad_schKiCad schematicSign up to downloadcircuit.kicad_pcbKiCad board, placed and routedSign up to downloadgerbers.zipGerber layers and Excellon drill filesSign up to downloadorder.zipGerbers, pick and place, assembly BOM with LCSC numbers, fab settingsSign up to downloadcircuit-ipc2581.xmlIPC-2581, one-file CAM handoffSign up to downloadbom.csvBill of materials with distributor part numbers and pricesSign up to downloadboard.glb3D model of the assembled boardSign up to download
Questions about the ESP32-C3 board design
Can the board run from the battery alone?
Yes. With USB-C plugged in it runs from USB and charges the LiPo; unplugged, it runs from the LiPo through the buck-boost, which keeps 3.3 V as the cell discharges.
Why does the module overhang the board edge?
The ESP32-C3-WROOM-02 has a PCB antenna. Placing it past the outline keeps copper and parts away from the antenna, which is what Espressif’s layout guidance asks for.
Can I manufacture this ESP32-C3 board design?
Yes. The Gerbers, drill files, pick-and-place and an assembly BOM with LCSC part numbers were released with the board. Open it in the studio to download them and send them to a board house, with or without assembly.
Can I edit it in KiCad?
Yes. The schematic and the board are standard KiCad files with stock library symbols and footprints. Download the project from the studio, or describe a change there and Koppar designs the new version.
What do the parts cost?
$16.25 for one board at the last price check, 21 lines from Mouser and LCSC. Prices fall with quantity; the studio re-prices the BOM for yours and flags anything out of stock.
