Breadboard power from a phone charger
“Power my breadboard from a USB-C phone charger: 5 V and 3.3 V, an on/off switch and a little light so I know it's on”
- Copper layers
- 4
- Board size
- 30 × 30 mm
- Parts
- 19
- Connections routed
- 38 of 38
- KiCad DRC errors
- 0
- Unconnected items
- 0
What came out of the sentence
- A KiCad schematic with stock library symbols and footprints
- A placed and routed KiCad board, checked by KiCad DRC
- A bill of materials matched to Mouser and LCSC listings, priced at your quantity
- Gerbers, drill and pick-and-place files, released because the board is clean
Sign in with Google or your email. Opening a sample is free and does not use a design; your first three designs are on us.
Schematic
The KiCad schematic, with stock library symbols. Open full size

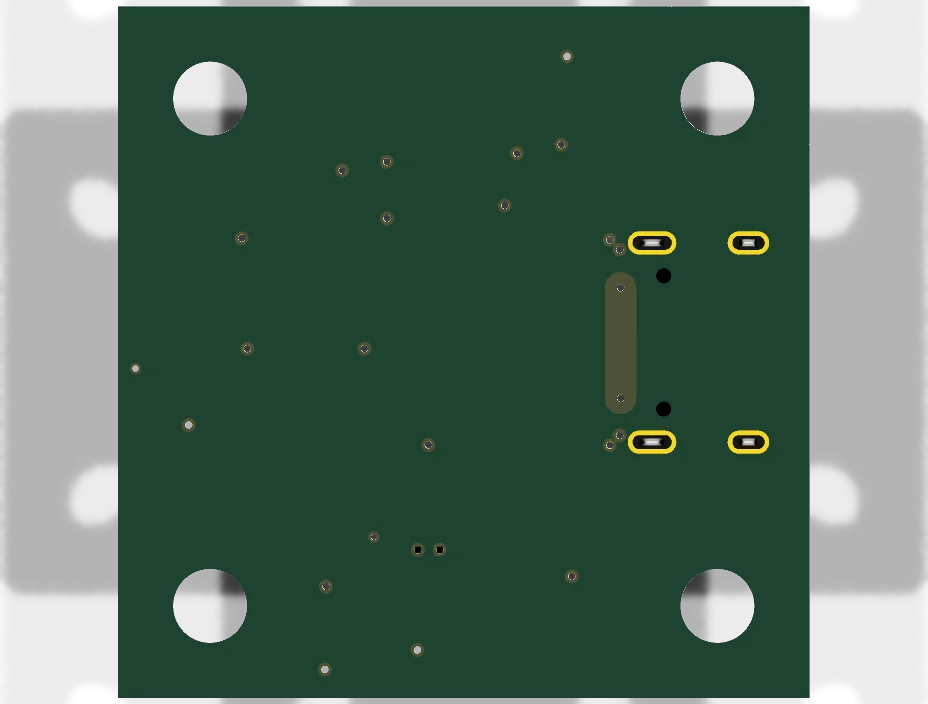

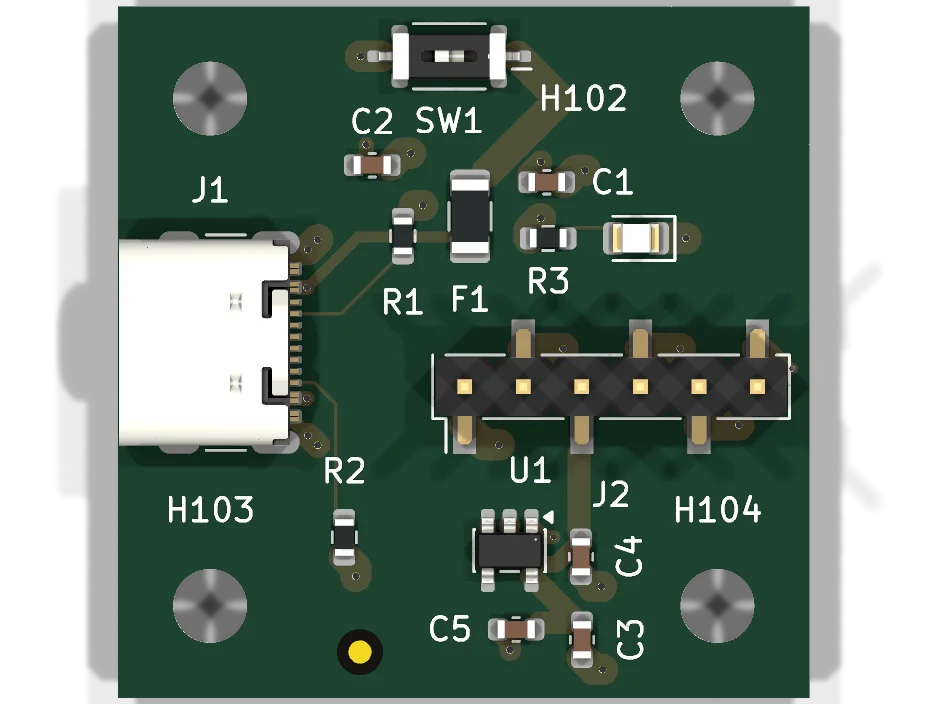

Both sides of the board
Bill of materials
11 lines matched to Mouser and LCSC listings: $3.55 of parts for one board. Prices and stock as of the last check; the studio refreshes them for your quantity.
| Refs | Qty | Value | Part | Source | Stock | Unit |
|---|---|---|---|---|---|---|
| C1, C5 | 2 | 10uF0603 | CL10A106KP8NNNCSamsung Electro-Mechanics | LCSCC19702 | 11,164,906 | $0.027 |
| C2, C3 | 2 | 1uF0603 | CL10A105KB8NNNCSamsung Electro-Mechanics | LCSCC15849 | 9,281,397 | $0.014 |
| C4 | 1 | 100nF0603 | CC0603KRX7R9BB104YAGEO | LCSCC14663 | 31,902,159 | $0.011 |
| D1 | 1 | LED Red0805 | NCD0805R1Foshan NationStar Optoelectronics | LCSCC84256 | 3,846,489 | $0.013 |
| F1 | 1 | MF-NSMF200-2Fuse | MF-NSMF200-2BOURNS | LCSCC89656 | 35,889 | $0.053 |
| J1 | 1 | USB4105-GF-AUSB | USB4105-GF-AGCT | Mouser640-USB4105-GF-A | 403,452 | $0.80 |
| J2 | 1 | POWER_OUTPUTPinHeader | PZ2.54-1X6P-H25JXTCONN | LCSCC42431790 | 7,230 | $0.033 |
| R1, R2 | 2 | 5.1k0603 | 0603WAF5101T5EUNI-ROYAL(Uniroyal Elec) | LCSCC23186 | 23,526,348 | $0.002 |
| R3 | 1 | 1k0603 | 0603WAF1001T5EUNI-ROYAL(Uniroyal Elec) | LCSCC21190 | 23,267,956 | $0.003 |
| SW1 | 1 | CVS-01TBSW | CVS-01TBNidec Components | Mouser229-CVS-01TB | 6,474 | $2.47 |
| U1 | 1 | AP2112K-3.3SOT-23-5 | AP2112K-3.3TRG1(MS)MSKSEMI | LCSCC22365427 | 44,601 | $0.079 |
Files
Released because KiCad found zero DRC errors and nothing unconnected. Sign up to download them or open the project in the studio.
circuit.kicad_schKiCad schematicSign up to downloadcircuit.kicad_pcbKiCad board, placed and routedSign up to downloadgerbers.zipGerber layers and Excellon drill filesSign up to downloadorder.zipGerbers, pick and place, assembly BOM with LCSC numbers, fab settingsSign up to downloadcircuit-ipc2581.xmlIPC-2581, one-file CAM handoffSign up to downloadbom.csvBill of materials with distributor part numbers and pricesSign up to downloadboard.glb3D model of the assembled boardSign up to download
